- Product Details

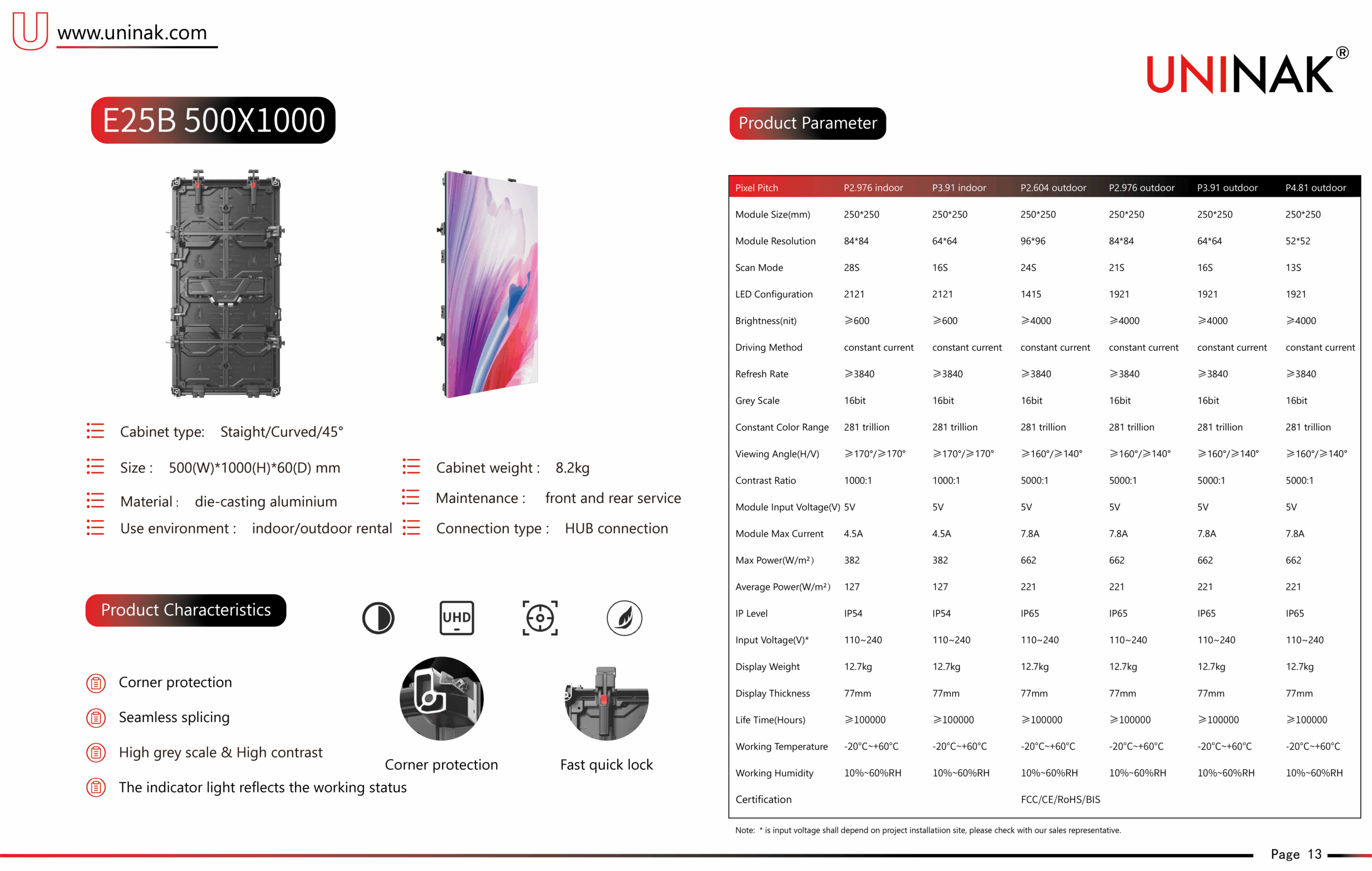

- Product Parameter
| Pixel Pitch | P2.976 indoor | P3.91 indoor | P2.604 outdoor | P2.976 outdoor | P3.91 outdoor | P4.81 outdoor |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Module Resolution | 84*84 | 64*64 | 96*96 | 84*84 | 64*64 | 52*52 |
| Scan Mode | 28S | 16S | 24S | 21S | 16S | 13S |
| LED Configuration | 2121 | 2121 | 1415 | 1921 | 1921 | 1921 |
| Brightness(nit) | ≥600 | ≥600 | ≥4000 | ≥4000 | ≥4000 | ≥4000 |
| Driving Method | constant current | constant current | constant current | constant current | constant current | constant current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | ≥170°/≥170° | ≥170°/≥170° | ≥160°/≥140° | ≥160°/≥140° | ≥160°/≥140° | ≥160°/≥140° |
| Contrast Ratio | 1000:1 | 1000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Module Input Voltage(V) | 5V | 5V | 5V | 5V | 5V | 5V |
| Module Max Current | 4.5A | 4.5A | 7.8A | 7.8A | 7.8A | 7.8A |
| Max Power(W/m²） | 382 | 382 | 662 | 662 | 662 | 662 |
| Average Power(W/m²） | 127 | 127 | 221 | 221 | 221 | 221 |
| IP Level | IP54 | IP54 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage(V)* | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 |
| Display Weight | 12.7kg | 12.7kg | 12.7kg | 12.7kg | 12.7kg | 12.7kg |
| Display Thickness | 77mm | 77mm | 77mm | 77mm | 77mm | 77mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH |
| Certification | FCC/CE/RoHS/BIS | |||||
