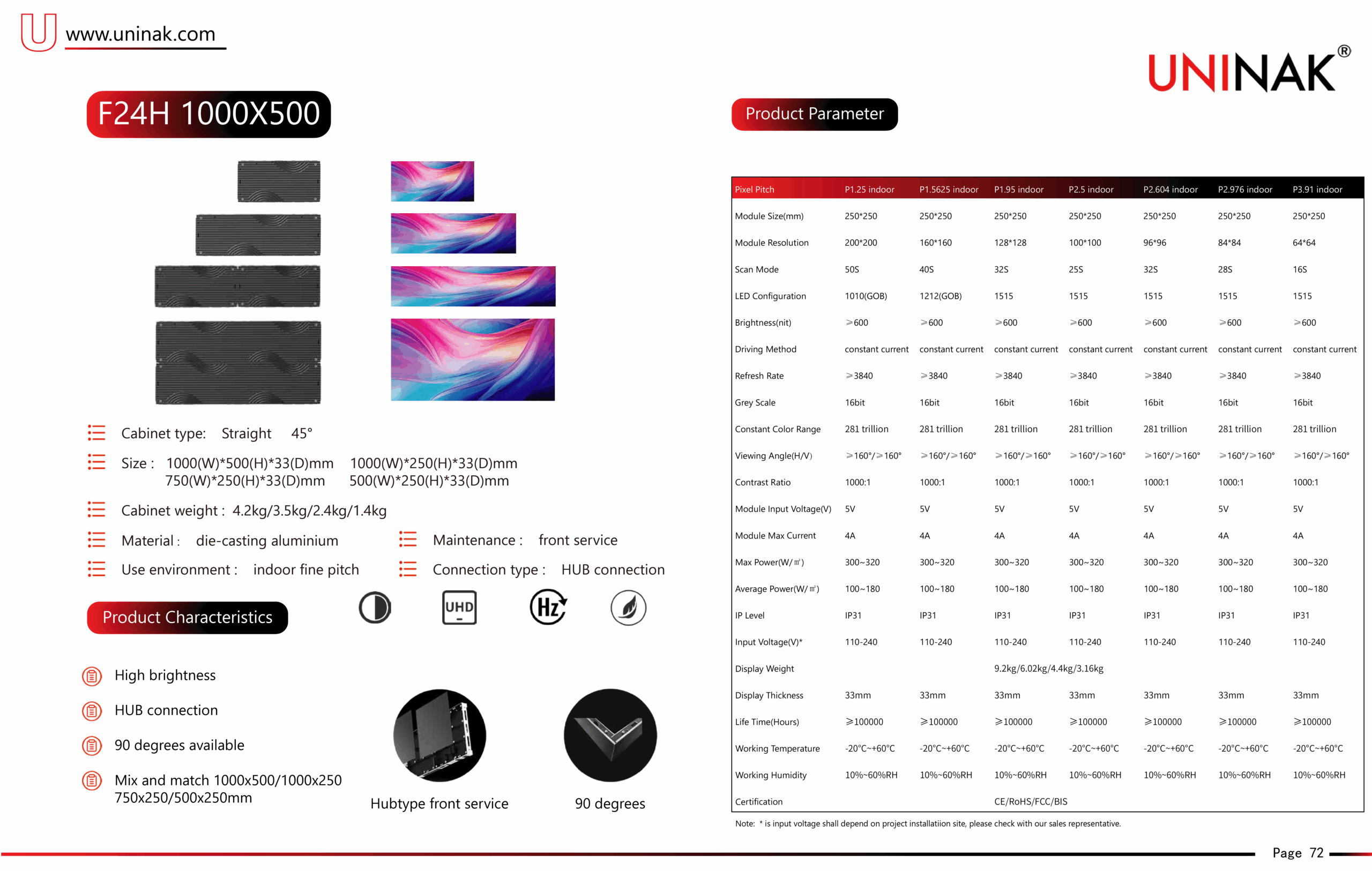

F24H-1000x500 - UNINAK

Piel Pitch	P1.25 indoor	P1.5625 indoor	P1.95 indoor	P2.5 indoor	P2.604 indoor	P2.976 indoor	P3.91 indoor
Module Size(mm)	250*250	250*250	250*250	250*250	250*250	250*250	250*250
Module Resolution	200*200	160*160	128*128	100*100	96*96	84*84	64*64
Scan Mode	50s	40S	32s	25s	32S	28S	16S
LED Configuration	1010(GOB)	1212(GOB)	1515	1515	1515	1515	1515
Brightness(nit)	>600	>600	>600	>600	>600	>600	>600
Driving Method	constant currer	constant current	constant current	constant curren	constant current	constant current	constant current
Refresh Rate	>3840	>3840	>3840	>3840	>3840	>3840	>3840
Grey Scale	16bit	16bit	16bit	16bit	16bit	16bit	16bit
Constant Color Range	281 trillion	281 trillion	281 tillion	281 trillion	281trillion	281 trillion	281 trillion
viewing Angle(H/V)	>160°/>160°	>160/>160*	>160°/>160″	>160°/>160°	>160°/>160°	>160°/>160°	>160°/>160°
Contrast Ratio	1000:1	1000:1	1000:1	1000:1	1000:1	10001	100:1
Module Input Voltage(V)	4.5-5	4.5-5	4.5~5	4.5-5	4.5-5	4.5~5	4.5-5
Module Max Current(A)	3月4日	3~4	3~4	3~4	3~4	3~4	3~4
Max Power(W/）	300-320	300~320	300-320	300-320	300~320	300~320	300~320
Average Power(W/=）)	100-180	100~180	100-180	100-180	100~180	100-180	100~180
TIP Level	IP42	IP42	IP42	IP42	IP42	IP42	IP42
Input Voltage(V)*	110-240	110-240	110-240	110-240	110-240	110-240	110-240
Display Weight	9.2kg/6.02kg/4.4kg/3.16kg
Display Thickness	33mm	33mm	33mm	33mm	33mm	33mm	33mm
Life Time(Hours)	>100000	>100000	>100000	>100000	>100000	>100000	>100000
Working Temperature	-20°C-+60°C	-20℃-+60℃	-20℃-+60℃	-20PC-+60C	-20C-+60°C	-20°℃C-+60°C	-20°C=+60°C
Working Humidity	10%-60%RH	10%-60%RH	10%-60%RH	10%-60%RH	10%-60%RH	10%-60%RH	10%~60%RH
Certification	CE/RoHS/FCC/BIS
